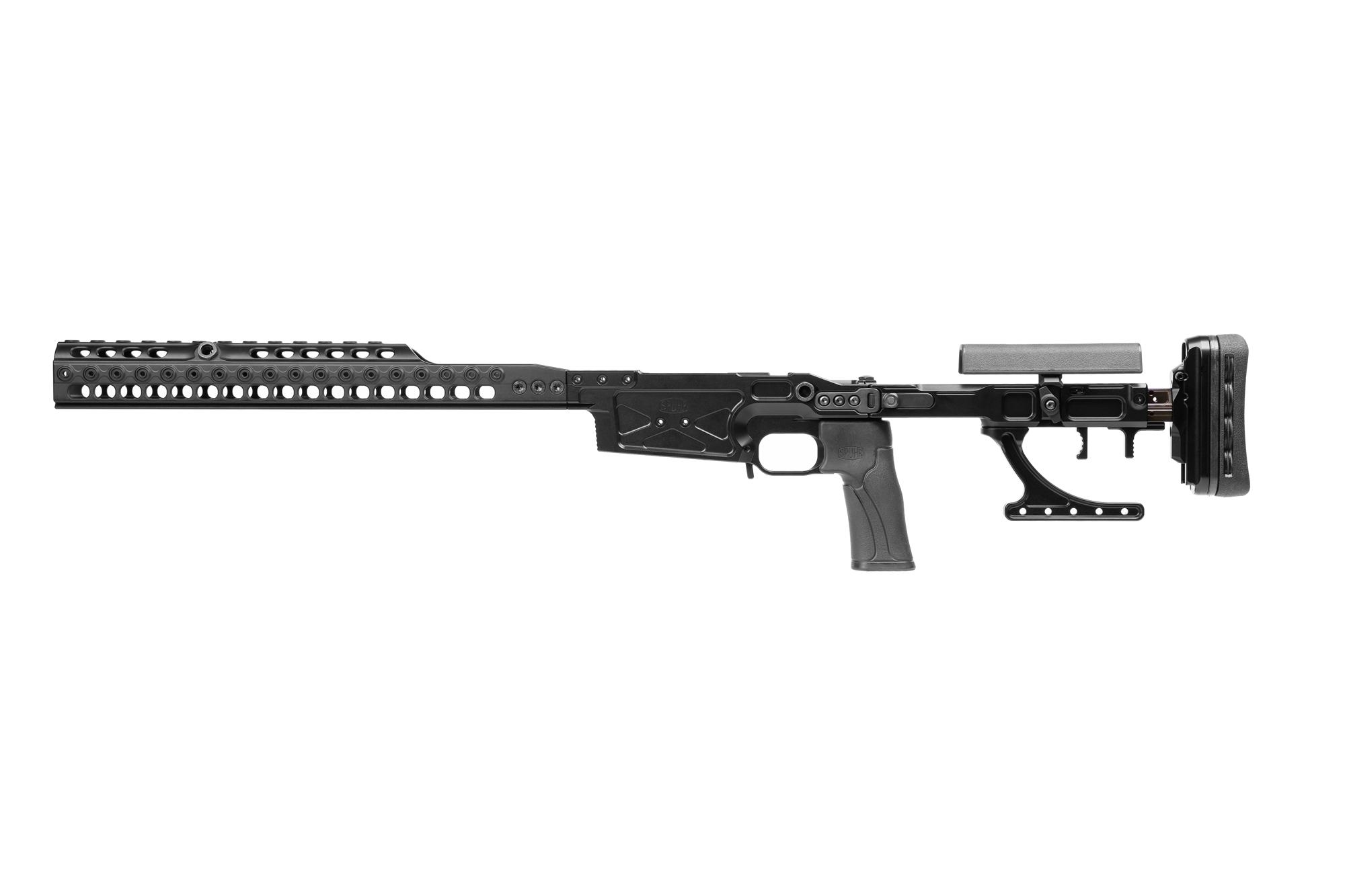

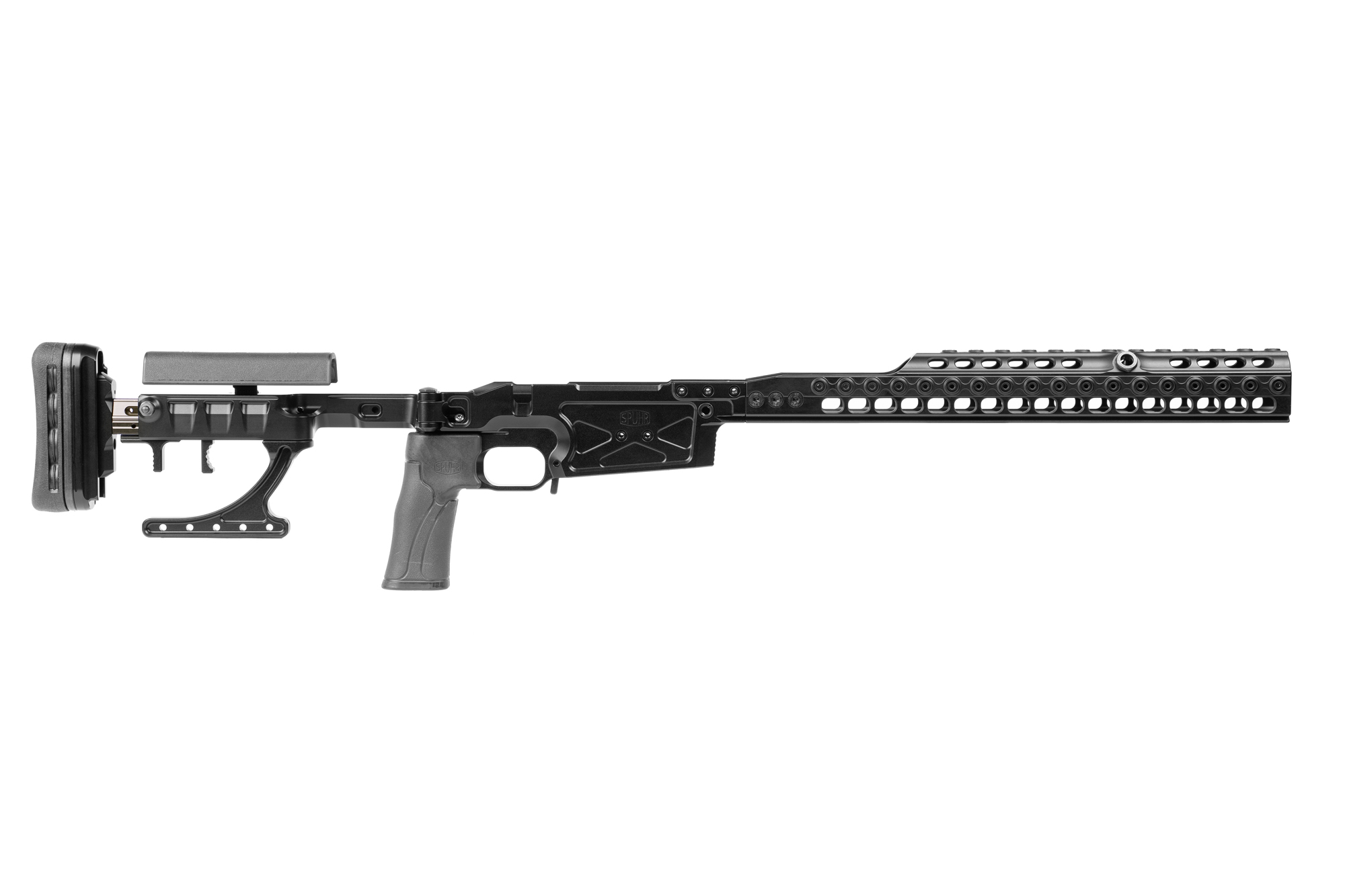

Spuhr Chassis Rem 700 SA, Black, 16"
€2,225
Spuhr® Ideal Chassis System™ - Modular Chassis System with Quick-Adjustable LOP and Recoil Pad Height for Proper Eye-Relief when Moving Between Different Shooting Positions
Optimized for Remington 700 Short Action
- Secure payment by card
- Secure payment by PayPal
- E-mail us, we reply swiftly!
- ActionRemington 700 SA
- ColorBlack Hardcoat Anodized
- Forend16" Standard
- Magazine Length.308 Win
Description
Article no.: CH000001
16" Forend for barrel profiles up to Heavy Varmint profile. Features Spuhr Interfaces™ along the top of the forend for use with NV devices and illuminators, etc.
Will also fit short actions from:
Specifications:
Length: 975 mm/38.4” (685 mm/27.0” folded)
LOP: 330 mm/13" (minimum)
Width: 48.5 mm/1.9”
Height: 180 mm/7.1”
Weight: 2.37 kg/5.22 lb
Forend: 406 mm/16.0”
Color: Black
The Spuhr® Ideal Chassis System™ (SICS™) is a modular chassis system, designed to provide a rigid support of the barreled action for improved accuracy. The SICS™ features:
Note: Actions with 60-degree bolt throw may not allow stock to be folded over closed bolt. Due to variances in dimensions, some recoil lugs will require fitting.
Max barrel diameter at the shank: 32 mm/1.25".
Clearance between front of action and handguard is approximately 130 mm/5.11" and may require the use of a 38 mm/1.5" high mount.
Will also fit short actions from:
- Impact Precision
- Mack Bros
- Vudoo Gun Works
Specifications:
Length: 975 mm/38.4” (685 mm/27.0” folded)
LOP: 330 mm/13" (minimum)
Width: 48.5 mm/1.9”
Height: 180 mm/7.1”
Weight: 2.37 kg/5.22 lb
Forend: 406 mm/16.0”
Color: Black
The Spuhr® Ideal Chassis System™ (SICS™) is a modular chassis system, designed to provide a rigid support of the barreled action for improved accuracy. The SICS™ features:
- Aircraft grade aluminum alloy construction
- Folding stock assembly with adjustment for solid lockup
- Quick-adjustable length-of-pull (50 mm/1.97” travel) and recoil pad height (32 mm/1.25”) – toolless and without play
- Height and length-adjustable cheek piece
- Length-adjustable proprietary pistol grip (8 mm/0.32” travel, AR-compatible)
- 16” Spuhr Interface™ forend with integrated ARCA Swiss rail and QD sling cups
- AICS pattern magwell - not for AI AX magazines
- Built-in barricade stop
Note: Actions with 60-degree bolt throw may not allow stock to be folded over closed bolt. Due to variances in dimensions, some recoil lugs will require fitting.
Max barrel diameter at the shank: 32 mm/1.25".
Clearance between front of action and handguard is approximately 130 mm/5.11" and may require the use of a 38 mm/1.5" high mount.
